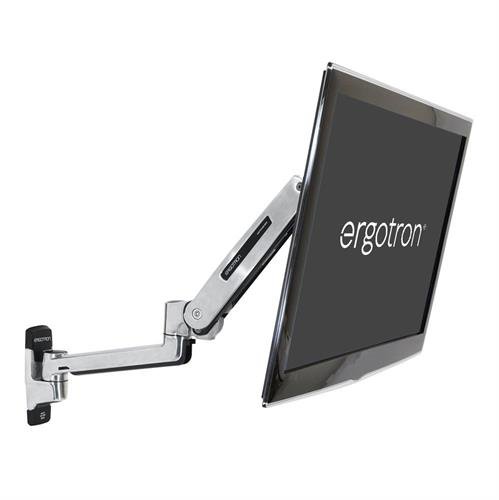

Attaches directly to sturdy vertical surfaces and offers full monitor movement and improved ergonomics for wall-mounted kiosks and digital signage displays.
Capacity: 7–25 lbs / 3.2–11.3 kg
Lift: 20" / 50.8 cm · Tilt: 70° up / 5° down · Rotation: 360°
Mounting Options: Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)
Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Product Weight: 11.3 lbs · Shipping Weight: 13.7 lbs
Shipping Dimensions: 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm)
Includes sit-stand arm, extension, wall-mount base, VESA brackets.
- Model
45-353-026- MSRP
- $ 465.00
- Warranty
- 10 years
- Category
- Screen Mounts
