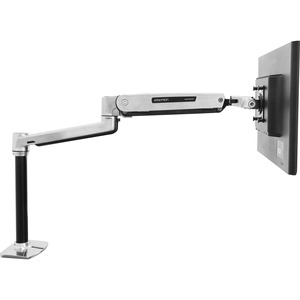

LX Sit-Stand Desk Mount

Clamps to sturdy horizontal surfaces and offers full monitor movement and improved ergonomics for desk-mounted kiosks.

Capacity: 7–25 lbs / 3.2–11.3 kg

Lift: 20" / 50.8 cm · Tilt: 70° up / 5° down · Rotation: 360°


Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm


Product Weight: 17.7 lbs · Shipping Weight: 20.5 lbs
Shipping Dimensions: 25" x 14.75" x 7.5" (64 x 38 x 19 cm)

Includes sit-stand arm, extension, desk clamp base, grommet-mount base, 48 cm pole, VESA brackets, attachment hardware.

Model

45-360-026

MSRP

$ 490.00

Warranty

10 years

Category

Screen Mounts

Documents

• MOLI Literature (PDF) (opens in a new tab)
• Specification sheet (PDF) (opens in a new tab)
• Quick install guide (PDF) (opens in a new tab)
• Dimensional drawing (PDF) (opens in a new tab)
